標題: [品牌電腦] Commodore推出電容觸摸屏鍵盤一體機Invictus [打印本頁]

作者: SV 時間: 2010-6-4 10:50 標題: Commodore推出電容觸摸屏鍵盤一體機Invictus

CPU SUPPORT
Intel® Core™2 Duo, Intel® Core™2 Quad @ 1066MHz FSB LGA775 up to 95W. Intel® Pentium® D Processors with Hyper-Threading Technology, Intel® Celeron® D processor, support from 1.3GHz ~ 3.4GHz 800/533/400MHz System Bus. Supporting 9x, 5x & 6x series processors with EM64.

MOTHERBOARD CORE LOGIC
Intel G31 Express Chipset

MEMORY
2xDDR2 240-pin sockets, upto 4GB. Supports PC2-6400 800MHz 240 PIN DIMMs.

HDD SUPPORT
Integrated Serial ATA controller facilitates high-speed transfers at up to 3Gbps for each of the four ports. Allows easier hard drive upgrades and expansion for new SATA optical drives. 2x SATA2 ports.

VIDEO & GRAPHICS
Intel® Graphics Media Accelerator 3100. 3D enhancements enable greater flexibility and scalability and improved realism with support for Microsoft DirectX 9.0c Shader Model 2.0, OpenGL 1.4. Intel® Graphics also support the highest levels of the Windows Vista Aero experience. Stunning media, incredible visuals and new 3D capabilities. For business users, Intel validates the chipset, processor, graphics and software stack to provide a well-tested platform with support for Microsoft* Windows Vista, Windows* XP, Linux (top distributions) and OS/2 (SciTech). Dynamic Video Memory Technology (DVMT) 3.0 supports up to 289MB of Shared Video Memory; system memory is allocated where it is needed dynamically. Supports built-in Dual/Multi-Monitor windows displays using LCD monitor & DVI external display.

NETWORKING
1 Gigabit (GbE) Fast Ethernet, using Realtek RTL 8168B/8111C.

REMOVABLE HDD
Optional removable 2.5" hard disk drive.

AUDIO
Realtek High Definition Audio enables premium digital surround sound and delivers advanced features such as multiple audio streams and jack re-tasking. On-board AC'97 2.2 compliant 3D audio, SoundBlaster Pro compatible. Two built-in 2.5watt stereo speakers with three audio jacks for Audio Out, Line-in, and Microphone. Dolby Digital 5.1 surround sound, delivering six channels of enhanced sound quality.

I/O PORTS
4 USB 2.0 Ports with transfer rate up to 480Mbps, 2 RS-232 Serial Ports, 1 Parallel Port supporting SPP/EPP/ECP, 1 PS/2 mouse port, 1 POS or PS/2keyboard port, 1 DVI.

TOUCH PAD
Built-in Synaptic two-button touch-pad with vertical and horizontal scroll function.

OPTICAL DRIVE
One slim type Optical Drive, CDRW-DVD, or DVD+/-RW.

EXPANSION SLOTS
One PCI-e

One Mini PCI

SYSTEM BIOS

EFI

AMI Flash BIOS supports ACPI, API, DMI, Plug & Play, and security password.

Supports booting from HDD, PXE, LAN, CD-ROM, and ANY USB device.

Extensible Firmware Interface is a revolutionary standard to manage the booting process of next-generation PCs in a modular, interactive way. EFI standards allow the user to boot multiple operating systems, with a fully graphical interface and instant recognition of the peripherals. This feature requires the purchase and installation of a small, internally mounted module, supplied by others, that connects to an available motherboard USB header socket.

KEYBOARD
Full-Size Enhanced Windows keyboard, detachable keytop matrix.

LED INDICATIORS
On/Off LED, HDD, LAN Active.

HOTKEYS
WWW, Mail, Favorite, Log Off.

POWER SUPPLY
Uses 180Watt AC Adapter. Input: universal 100 ~ 240V AC, 50-60Hz. Output: 19V DC, 9.48A, Controlled by Dual Mode Power button on the keyboard. Low power sleep mode saves energy.

BIOS SECURITY
AMI BIOS System POST and BIOS setup password protection. TCG/TPM version 1.2 Support

SECURITY LOCK
Security lock slot located on the back of the system case

DIMENSIONS
18.5"W x 9.0"D x 0.5"H front, 2.5"H rear.

WEIGHT
Unit: 7.4 lbs (3.4kg), Power Adapter: 1.1lbs (0.5kg).

OPERATING ENVIRONMENT
Ambient Temperature: 0°C ~ 50°C (operating).

RELATIVE HUMIDITY
10% ~ 90% (non-condensing)

OPERATING SYSTEM COMPLIANCE
Microsoft Windows 7 (Full Aero)/ Vista/ XP/ 2000, LINUX.

AVAILABLE COLORS
Silver or Black

CERTIFICATIONS
FCC Class A, CE

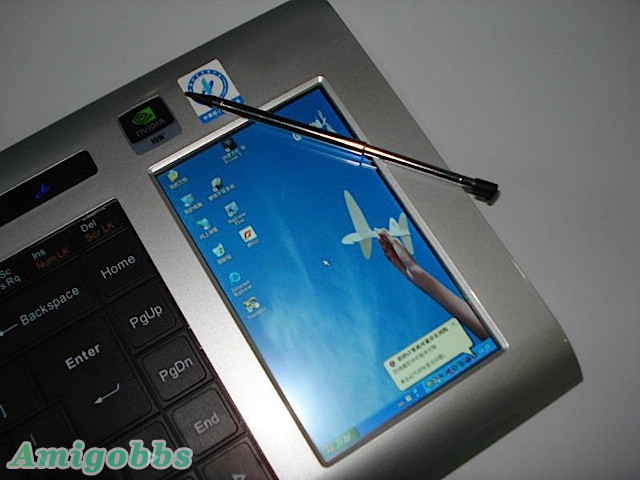

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus1.jpg (2010-6-4 10:50, 55.74 KB) / 該附件被下載次數 319
http://amigobbs.com/attachment.php?aid=25595

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus2.jpg (2010-6-4 10:50, 85.52 KB) / 該附件被下載次數 332
http://amigobbs.com/attachment.php?aid=25596

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus3.jpg (2010-6-4 10:50, 51.15 KB) / 該附件被下載次數 318
http://amigobbs.com/attachment.php?aid=25597

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus4.jpg (2010-6-4 10:50, 60.03 KB) / 該附件被下載次數 348
http://amigobbs.com/attachment.php?aid=25598

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus5.jpg (2010-6-4 10:50, 43.59 KB) / 該附件被下載次數 337
http://amigobbs.com/attachment.php?aid=25599

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus6.jpg (2010-6-4 10:50, 20.86 KB) / 該附件被下載次數 303
http://amigobbs.com/attachment.php?aid=25600

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus7.jpg (2010-6-4 10:51, 41.59 KB) / 該附件被下載次數 345
http://amigobbs.com/attachment.php?aid=25601

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus8.jpg (2010-6-4 10:51, 23.2 KB) / 該附件被下載次數 321
http://amigobbs.com/attachment.php?aid=25602

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus9.jpg (2010-6-4 10:51, 133.89 KB) / 該附件被下載次數 340
http://amigobbs.com/attachment.php?aid=25603

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus10.jpg (2010-6-4 10:51, 86.93 KB) / 該附件被下載次數 315
http://amigobbs.com/attachment.php?aid=25604

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus11.jpg (2010-6-4 10:51, 86.1 KB) / 該附件被下載次數 319
http://amigobbs.com/attachment.php?aid=25605

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus12.jpg (2010-6-4 10:51, 76.84 KB) / 該附件被下載次數 306
http://amigobbs.com/attachment.php?aid=25606

圖片附件: Commodore推出電容觸摸屏鍵盤一體機Invictus13.jpg (2010-6-4 10:51, 113.93 KB) / 該附件被下載次數 337
http://amigobbs.com/attachment.php?aid=25607

作者: lovedong 時間: 2010-6-5 11:31

好强大，有钱也要买一个用用
